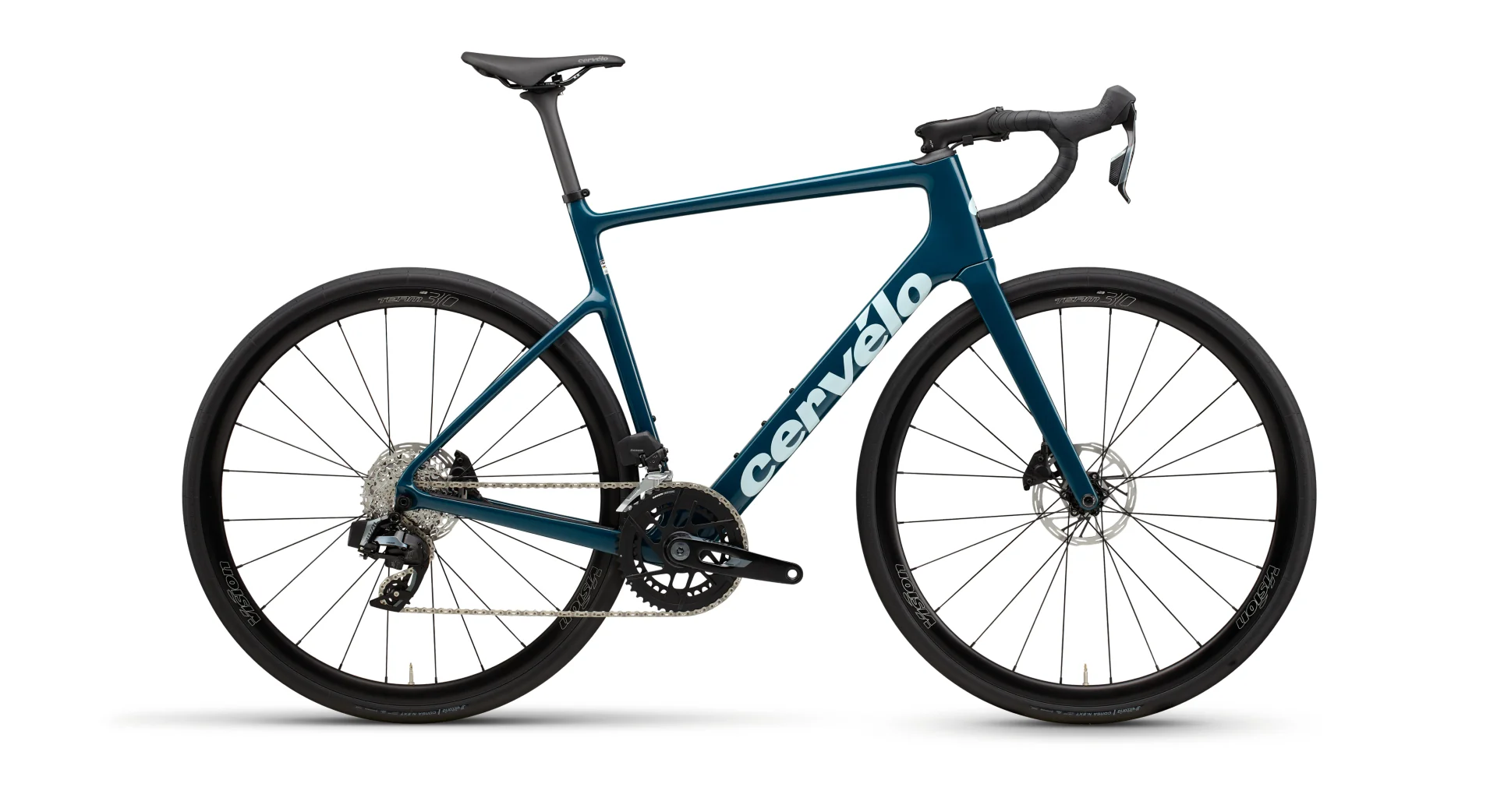

The Bike For The Modern Road Rider

Caledonia is a high-performance road bike with endurance-oriented geometry that delivers everything you’d expect from a Cervélo. It’s designed for all-season riders, fondo racers, and those who’ve just been bitten by the cycling bug. Clean, aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup add up to a bike that’s fast enough for spirited group rides, comfortable enough for all-day efforts, and looks right at home at every coffee stop.

Component	Specification
Fork	Cervélo All-Carbon, Tapered Caledonia
Headset	FSA IS2 1-1/8, 36° x 45° / 1-1/2, 36° x 45°
Front Thru Axle	Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
Rear Thru Axle	Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
Front Wheel	Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible
Rear Wheel	Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible
Tires	Vittoria Corsa N.EXT TLR G2.0, 700x32c
Crankset	SRAM Rival AXS E1, 48/35T, DUB
Bottom Bracket	SRAM DUB, T47 BBright
Chain	SRAM Rival E1
Derailleurs	SRAM Rival AXS E1
Cassette	SRAM Rival D1, 10-36T, 12-Speed
Shifter / Brake	SRAM Rival AXS E1
Handlebar	Cervélo HB23 alloy
Stem	Cervélo ST36 Alloy
Saddle	Cervélo Saddle
Seatpost	Cervélo SP19 Carbon, 27.2mm
Brake Rotors	SRAM Paceline Centerlock
Accessories	Cervélo Front Computer/Accessory Mount 810, Cervélo Removable Fender Mounts, Cervélo Rear Accessory Mount
Sizes	48, 51, 54, 56, 58, 61

Size	48	51	54	56	58	61
Reach (mm)	360	369	378	387	396	405
Stack (mm)	505	530	555	580	605	630
Head Tube Angle	70.5°	71.5°	72°	72°	72°	72°
Front Center (mm)	579.4	581.7	591.5	608.5	626	643
Bottom Bracket Drop (mm)	76.5	76.5	74	74	71.5	71.5
Head Tube Length (mm)	89.5	109.9	136	162.3	191.2	217.5
Top Tube Length (mm)	502	522	543	565	581	598
Seat Tube Angle	74.5°	74°	73.5°	73°	73°	73°
Standover Height (mm)	701	741	773	796	823	847
Trail (mm)	60	60	60	60	60	60
Wheel Size	700C	700C	700C	700C	700C	700C
Fork Offset (mm)	59	53	50	50	50	50
Wheelbase (mm)	982.2	984.5	995.2	1012.3	1030.7	1047.8
Chainstay Length (mm)	415	415	415	415	415	415
